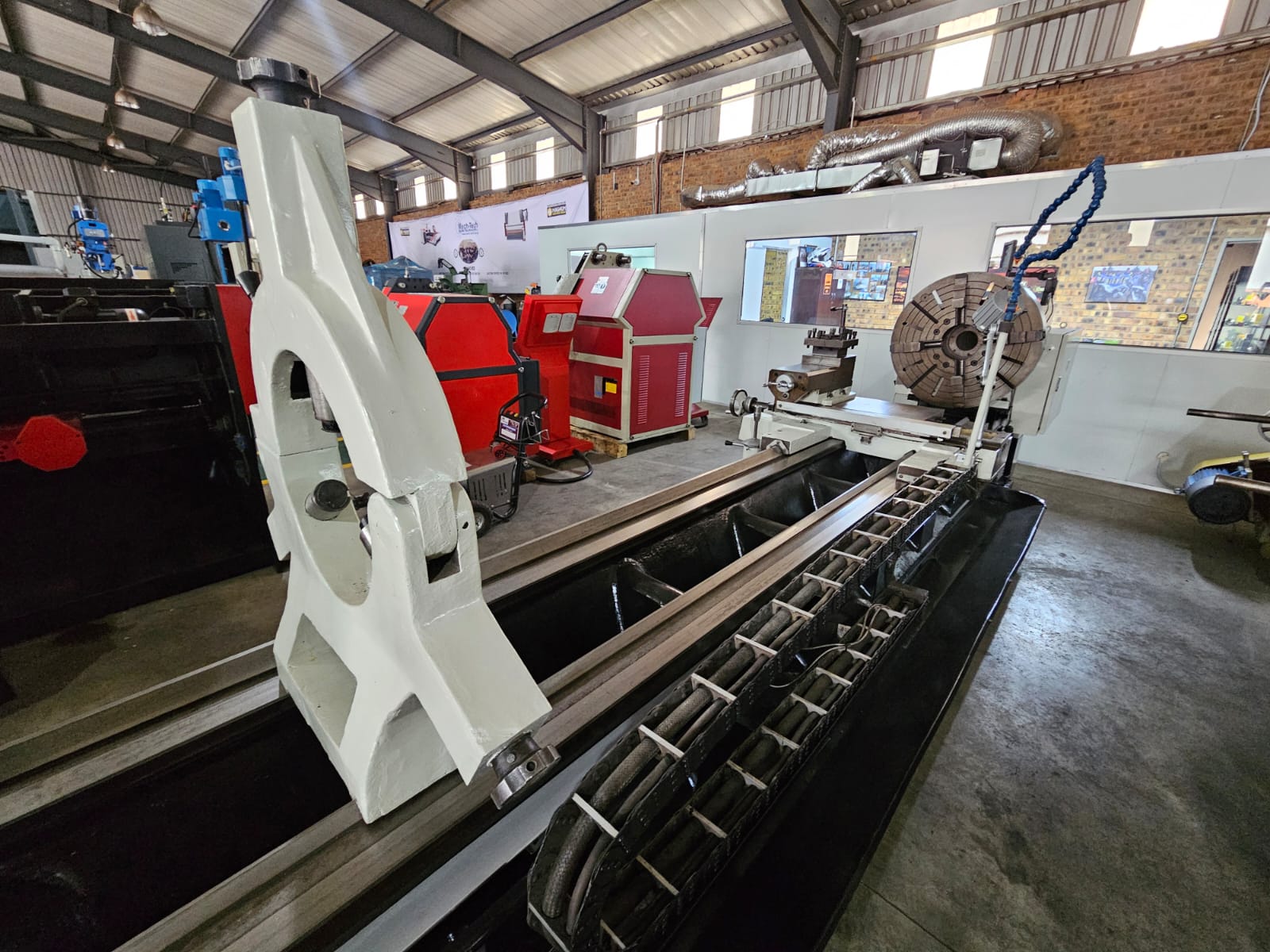

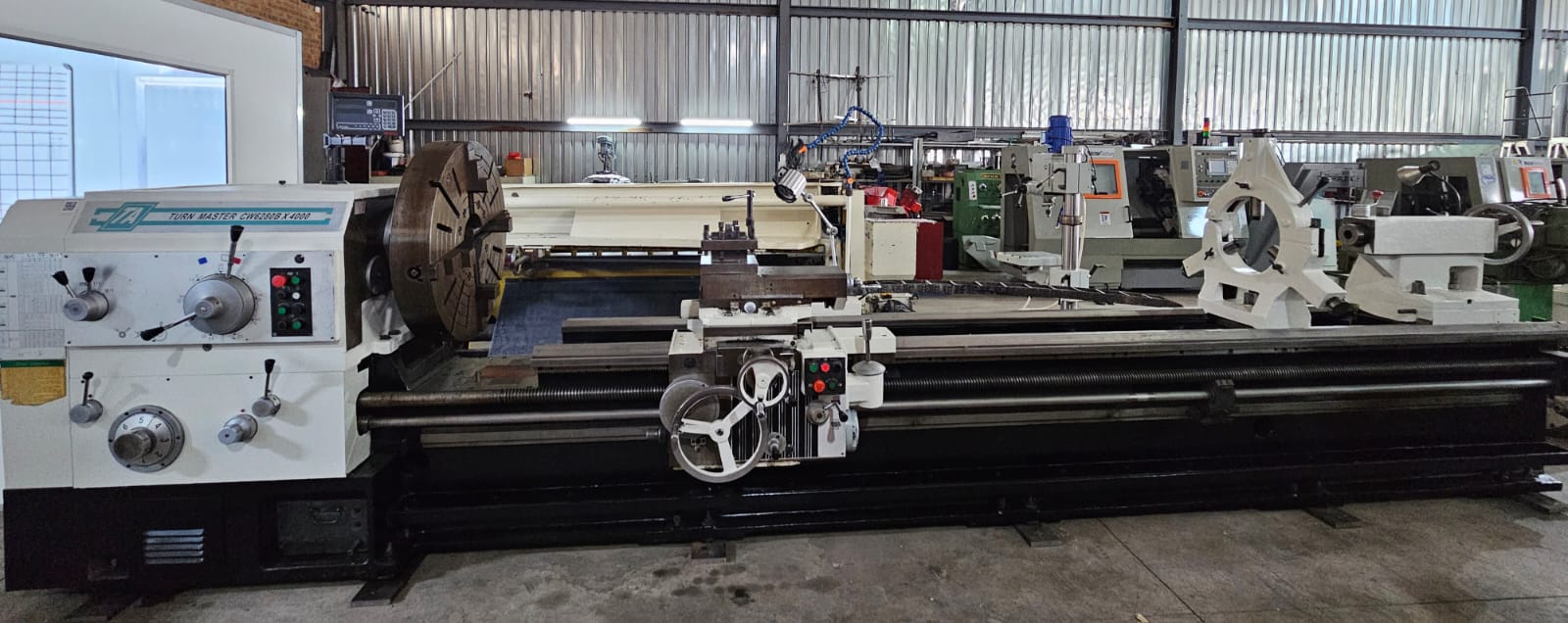

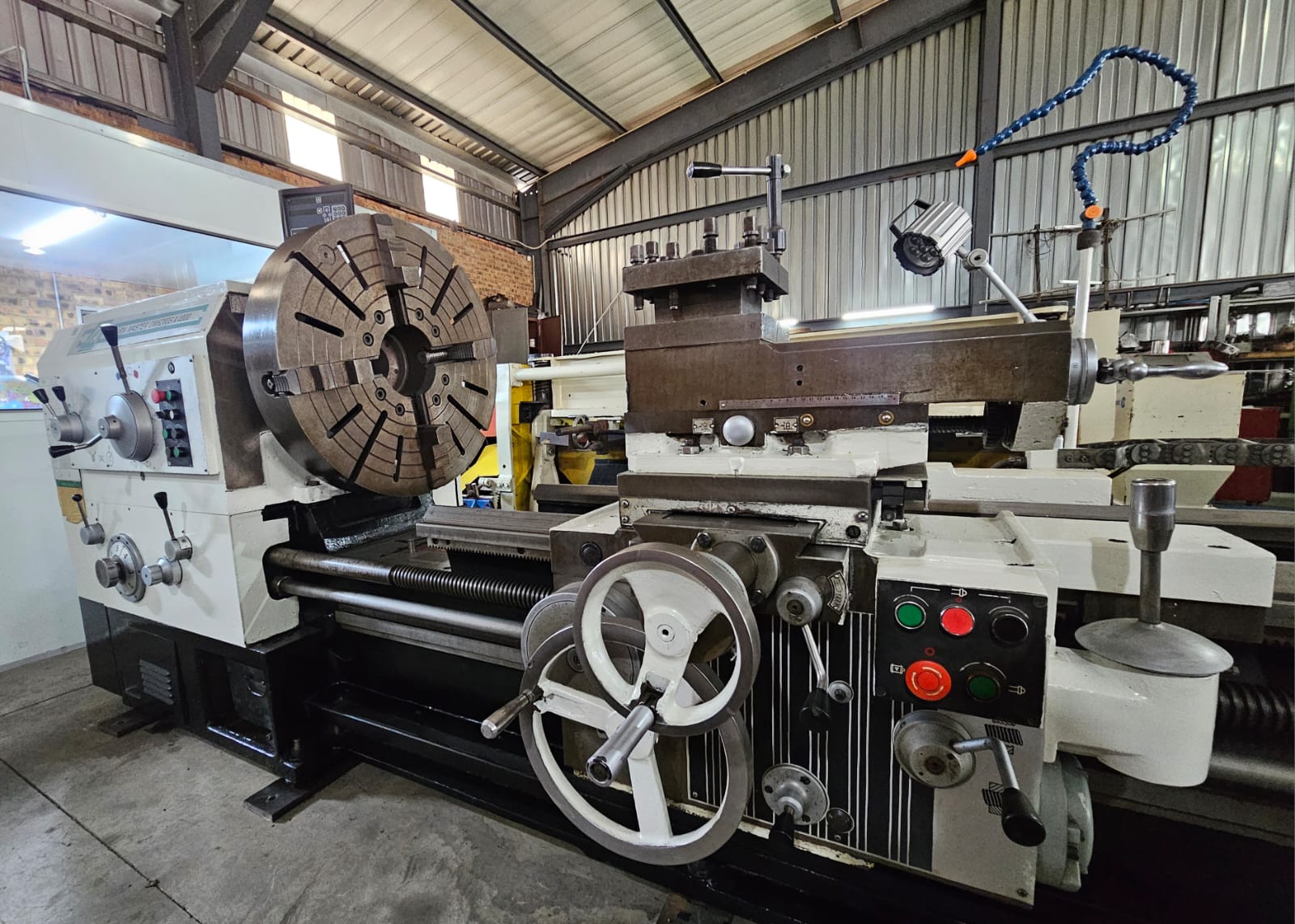

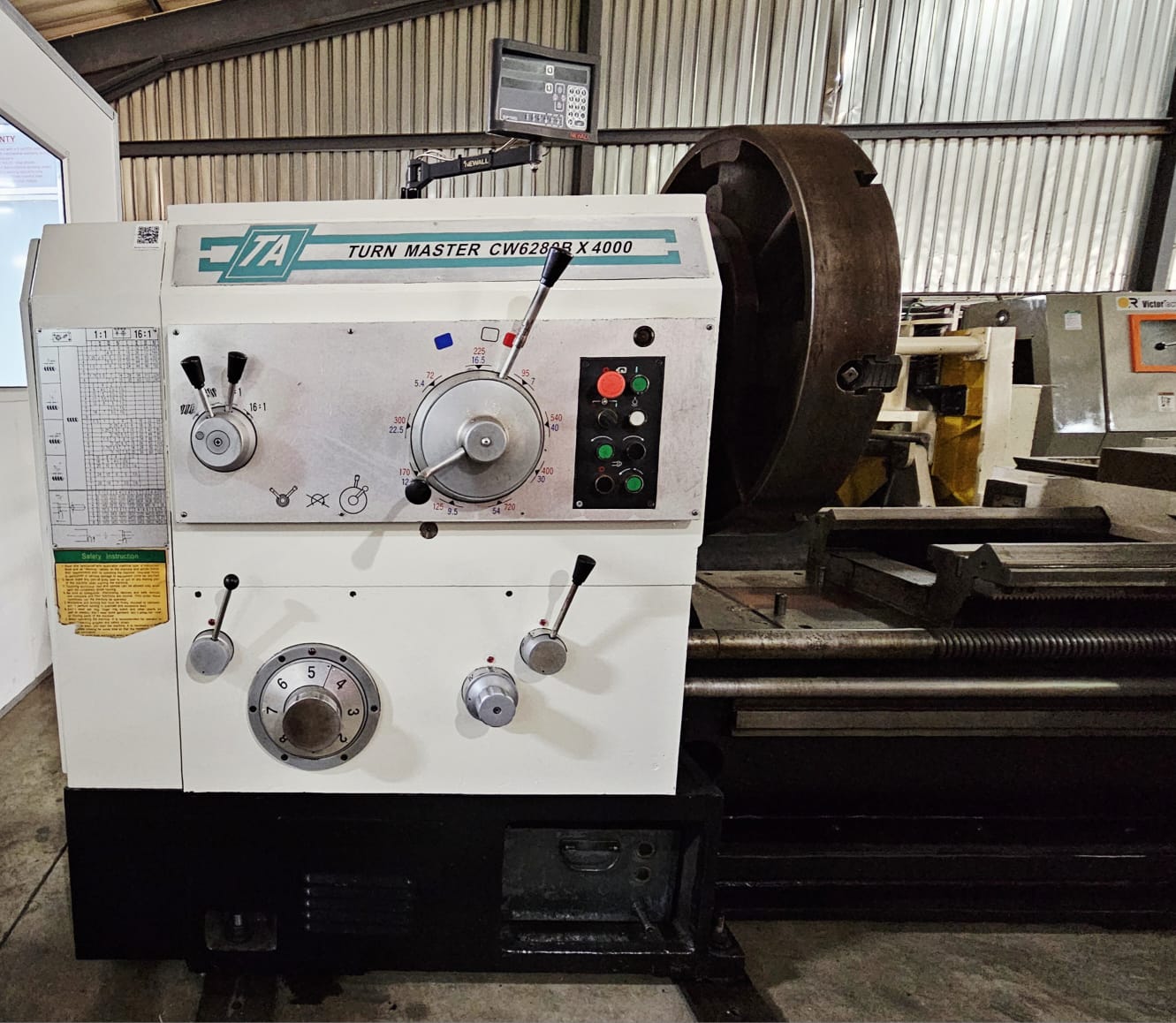

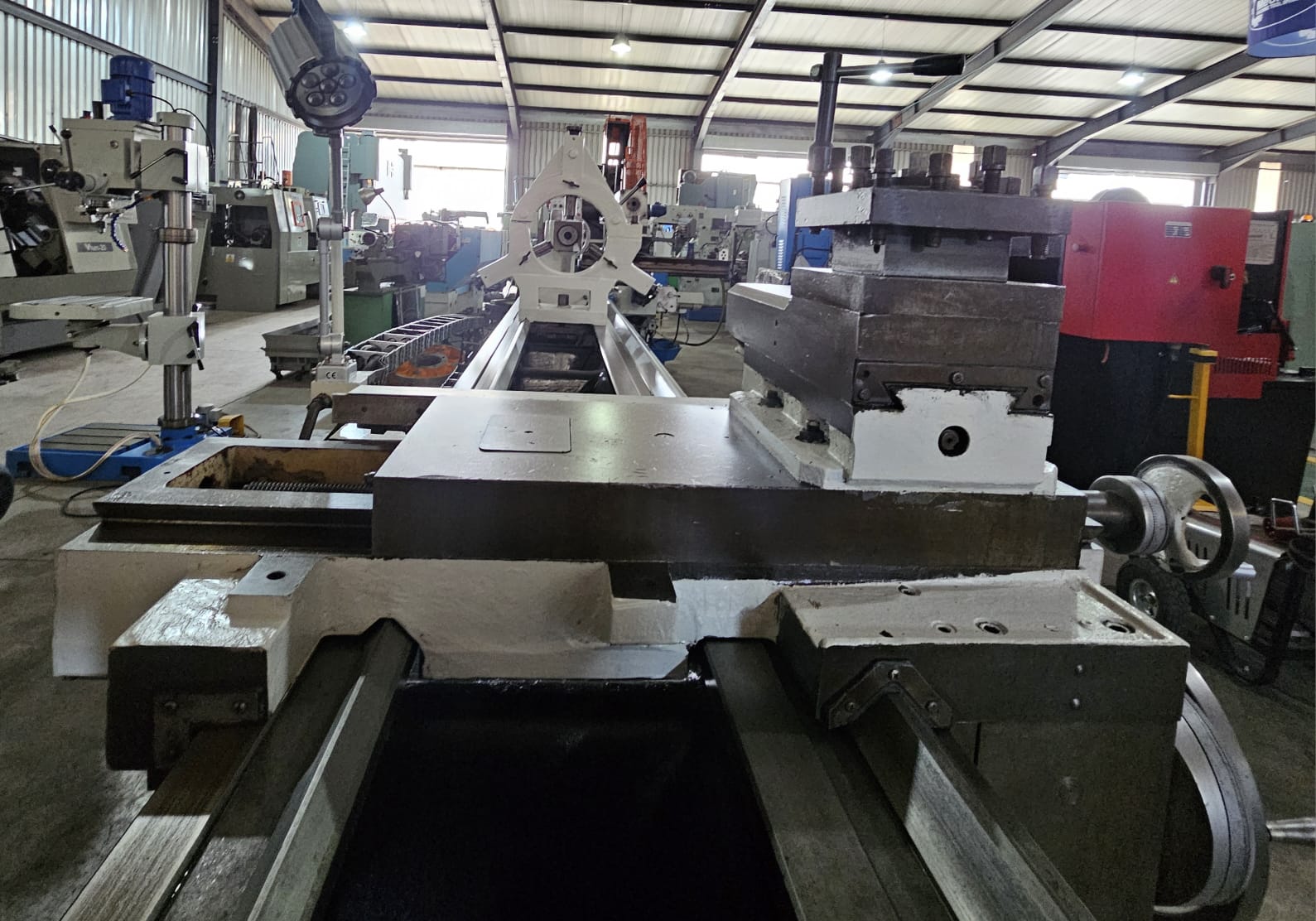

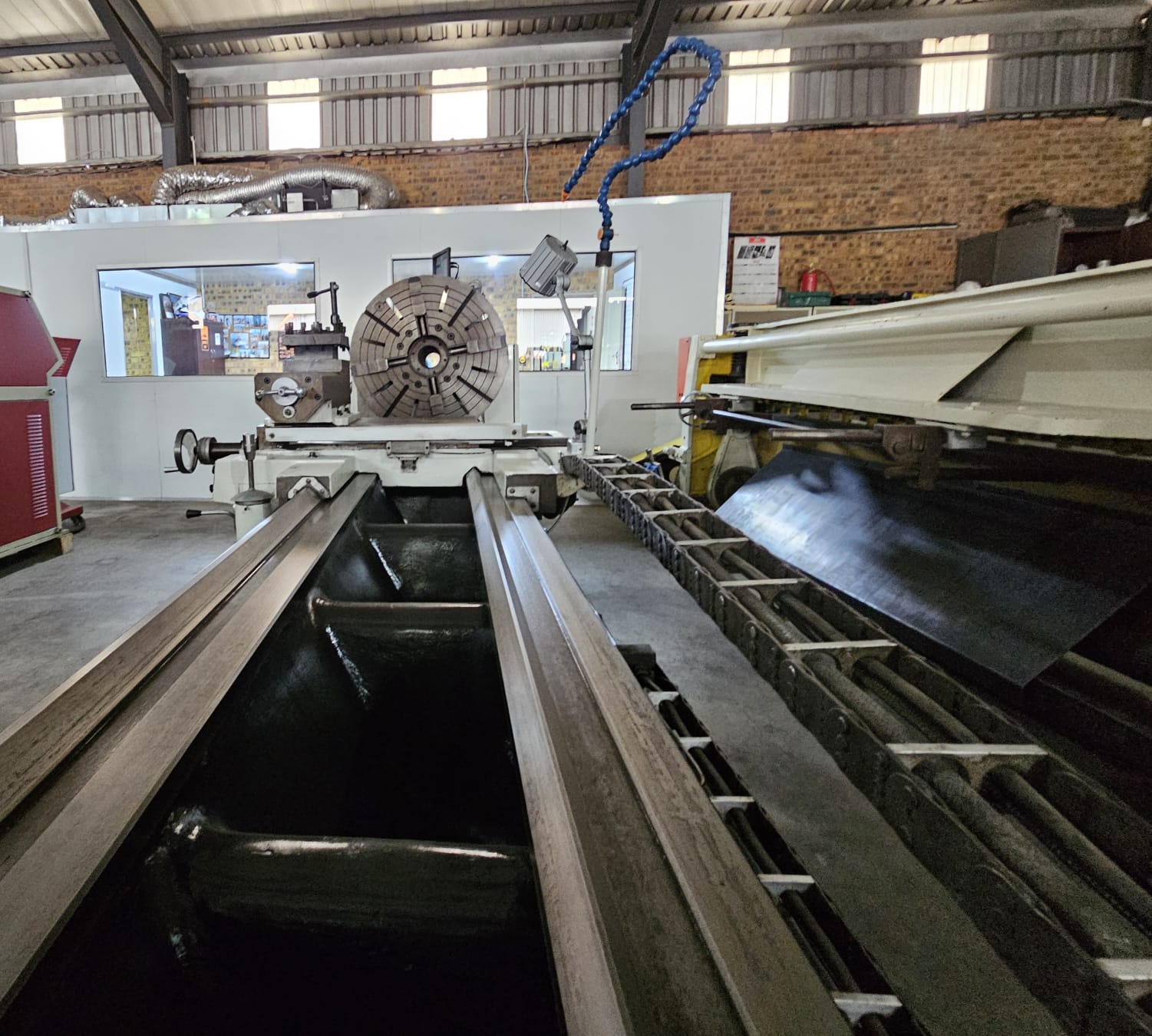

TURN MASTER LATHE

For pricing please contact our sales team

Feature AT-1340-G-TW (Standard Toolroom) AT-1550-G-TW (Heavy Duty)

Swing Over Bed 13.39" (340 mm) 15.25" (387 mm)

Distance Between Centers 40" (1000 mm) 50" (1270 mm)

Swing Over Cross Slide 8.25" (210 mm) 9.5" (240 mm)

Swing in Gap ~20" ~24"

Spindle Bore 1 1/2" (38 mm) 2 3/16" (55 mm)

Spindle Mount D1-4 Camlock D1-6 Camlock

Spindle Speeds 50 – 2570 RPM (Variable) 25 – 2000 RPM (16 Steps)

Motor Power 5 HP 7.5 HP

Tailstock Taper MT #3 MT #4

Machine Weight ~3,000 lbs (1,360 kg)

Get a quote
