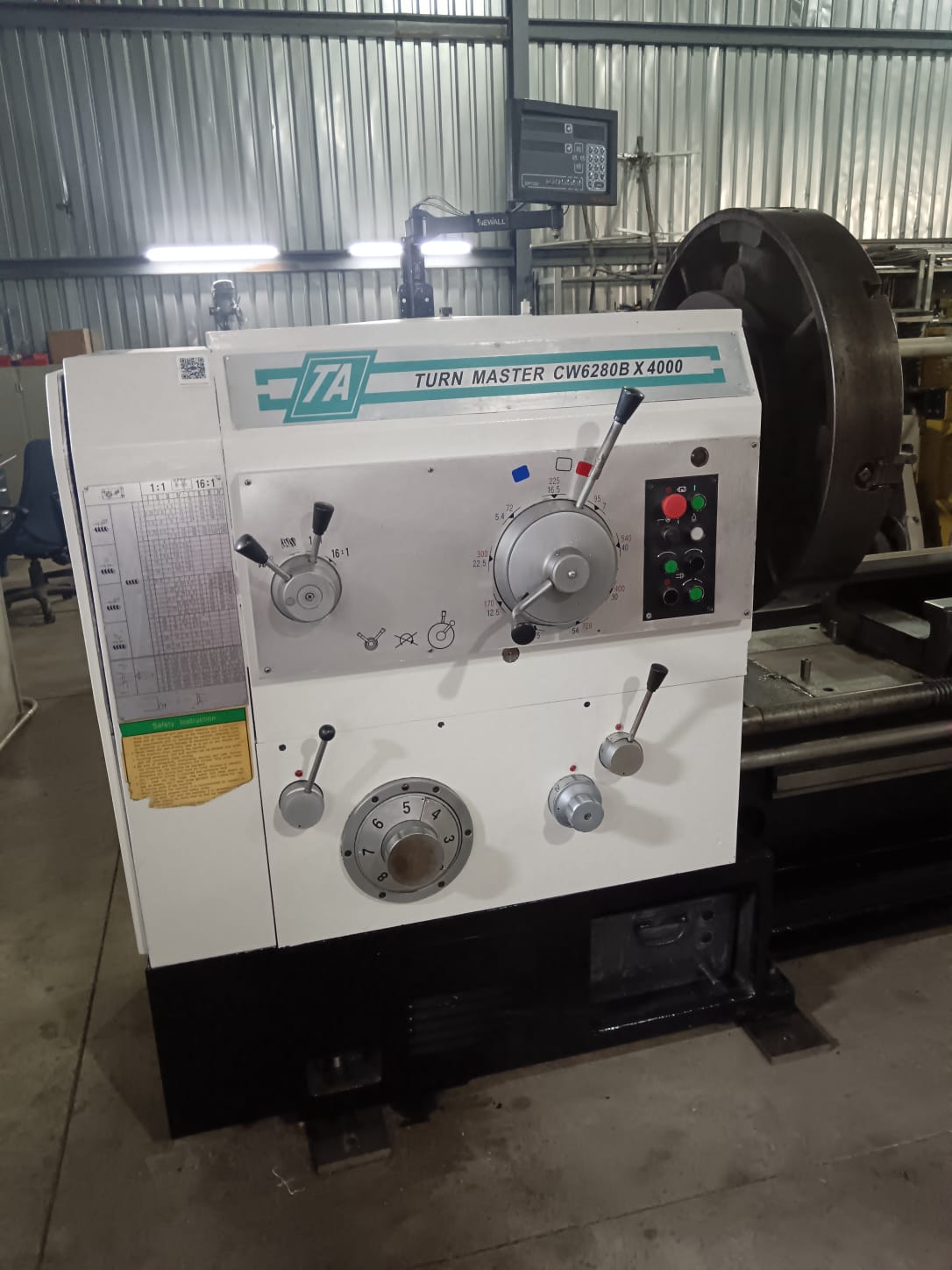

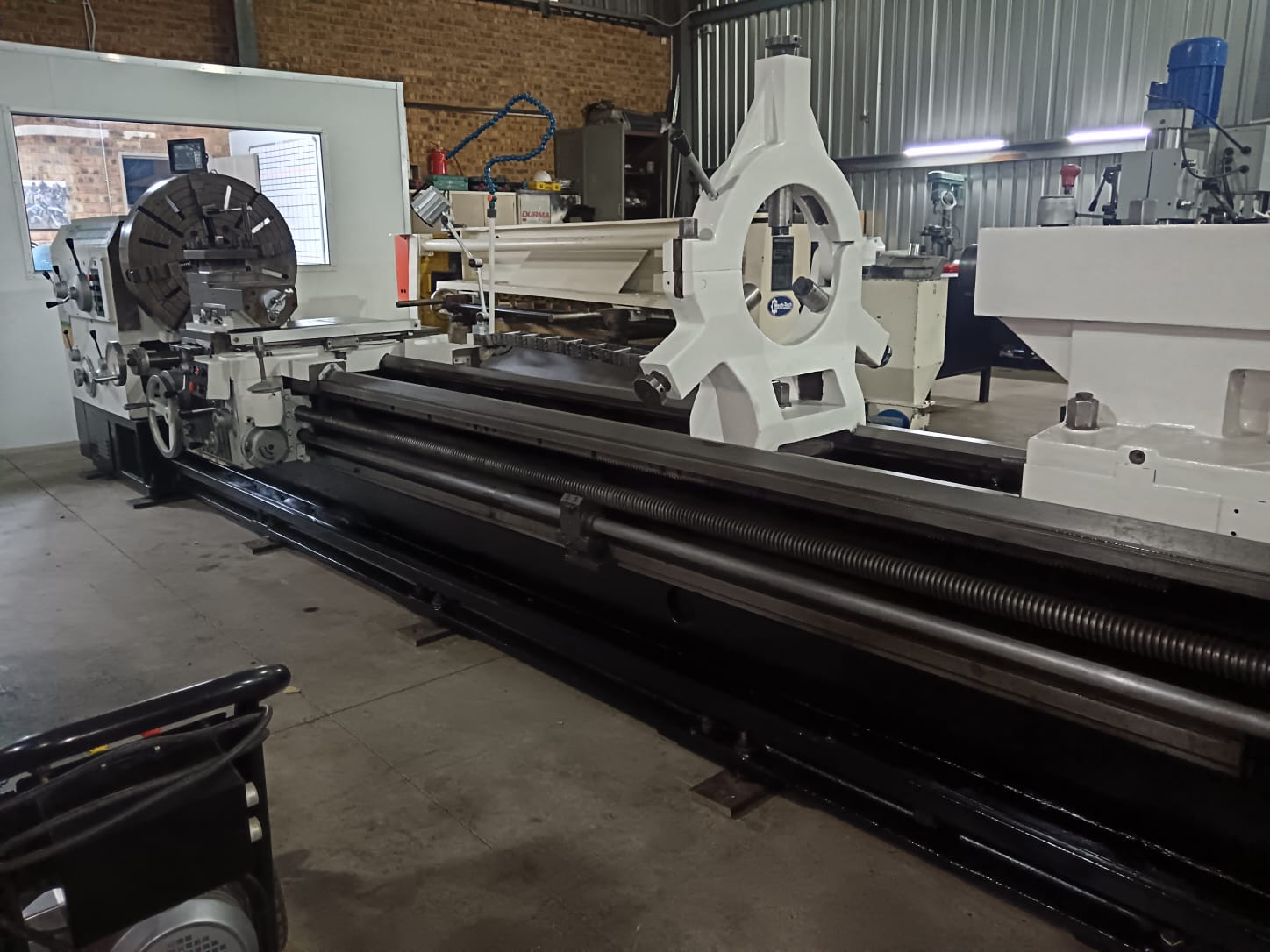

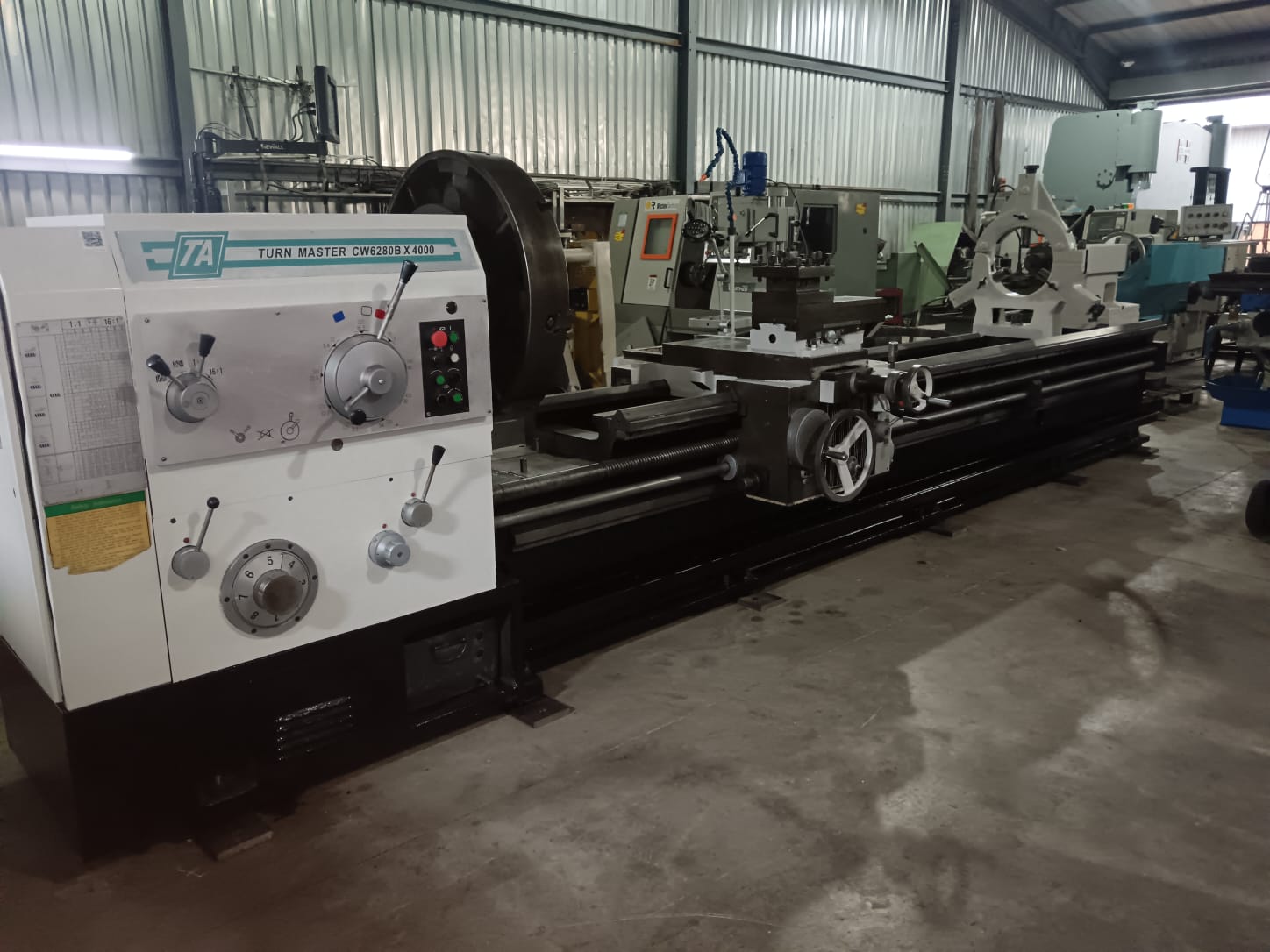

TURN MASTER CW6282 x 4000mm LATHE WITH NEWALL DRO SYSTEM

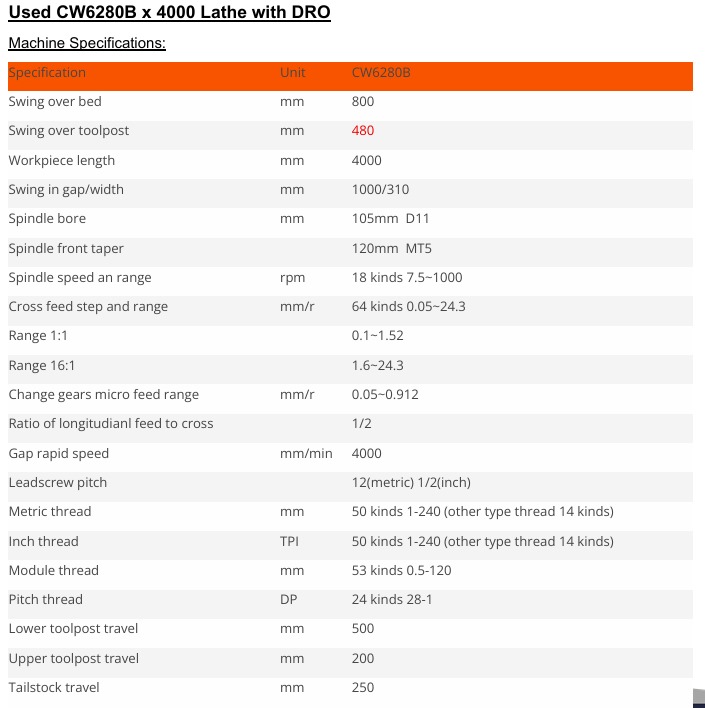

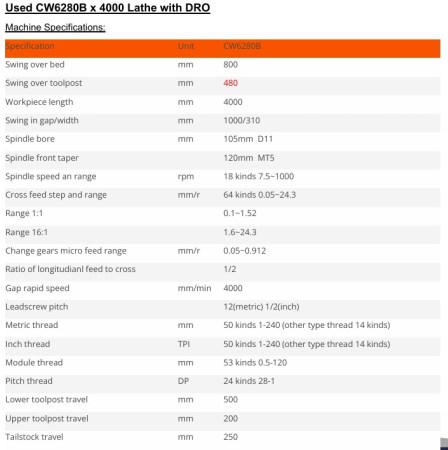

• Specification Unit CW6280B
• Swing over bed mm 800
• Swing over toolpost mm 480
• Workpiece length mm 4000
• Swing in gap/width mm 1000/310
• Spindle bore mm 105mm  D11
• Spindle front taper 120mm  MT5
• Spindle speed an range rpm 18 kinds 7.5~1000
• Cross feed step and range mm/r 64 kinds 0.05~24.3
• Range 1:1 0.1~1.52
• Range 16:1 1.6~24.3
• Change gears micro feed range mm/r 0.05~0.912
• Ratio of longitudianl feed to cross 1/2
• Gap rapid speed mm/min 4000
• Leadscrew pitch 12(metric) 1/2(inch)
• Metric thread mm 50 kinds 1-240 (other type thread 14 kinds)
• Inch thread TPI 50 kinds 1-240 (other type thread 14 kinds)
• Module thread mm 53 kinds 0.5-120
• Pitch thread DP 24 kinds 28-1
• Lower toolpost travel mm 500
• Upper toolpost travel mm 200
• Tailstock travel mm 250

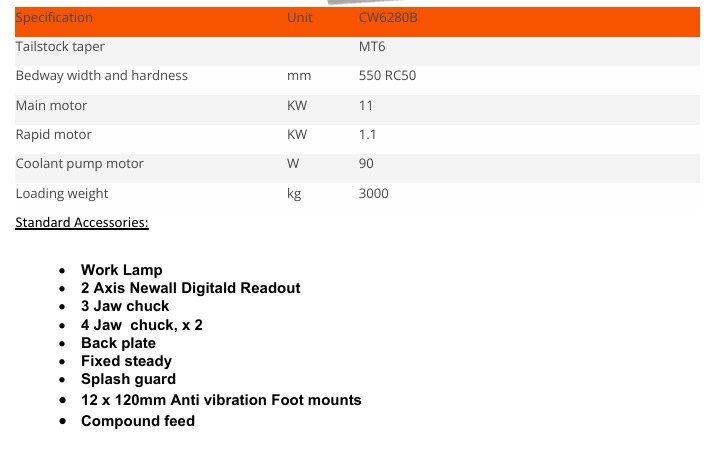

• Tailstock taper MT6
• Bedway width and hardness mm 550 RC50
