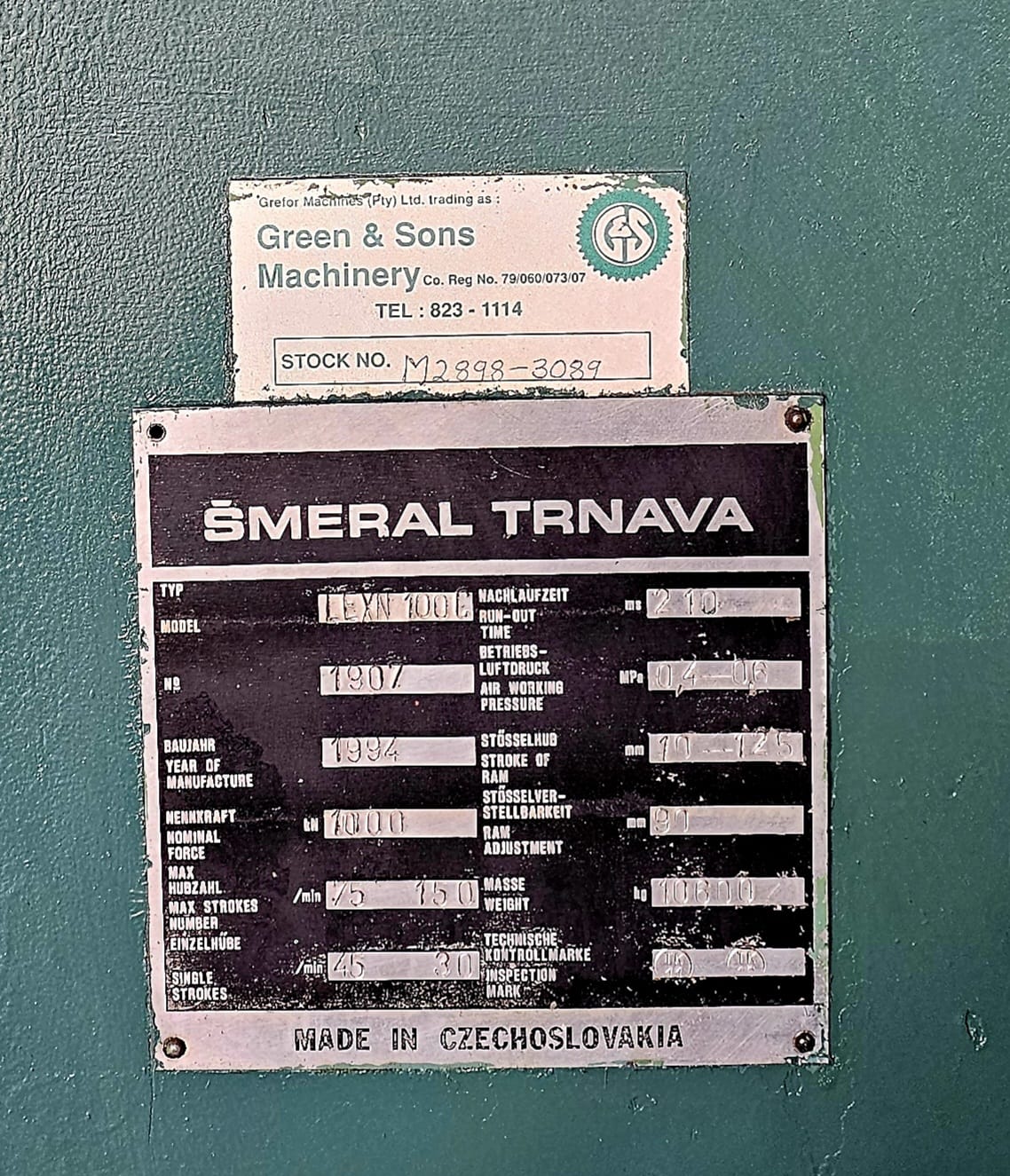

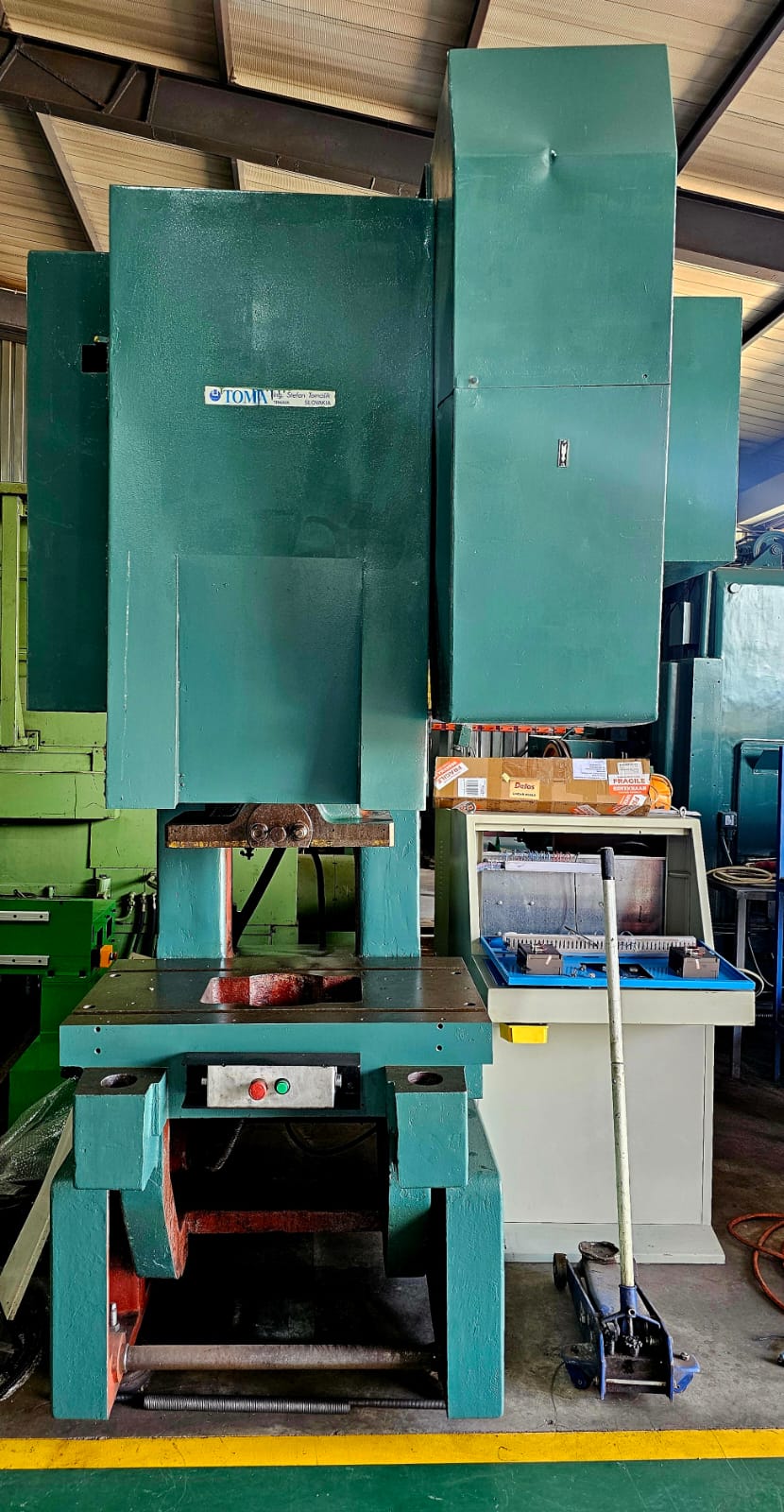

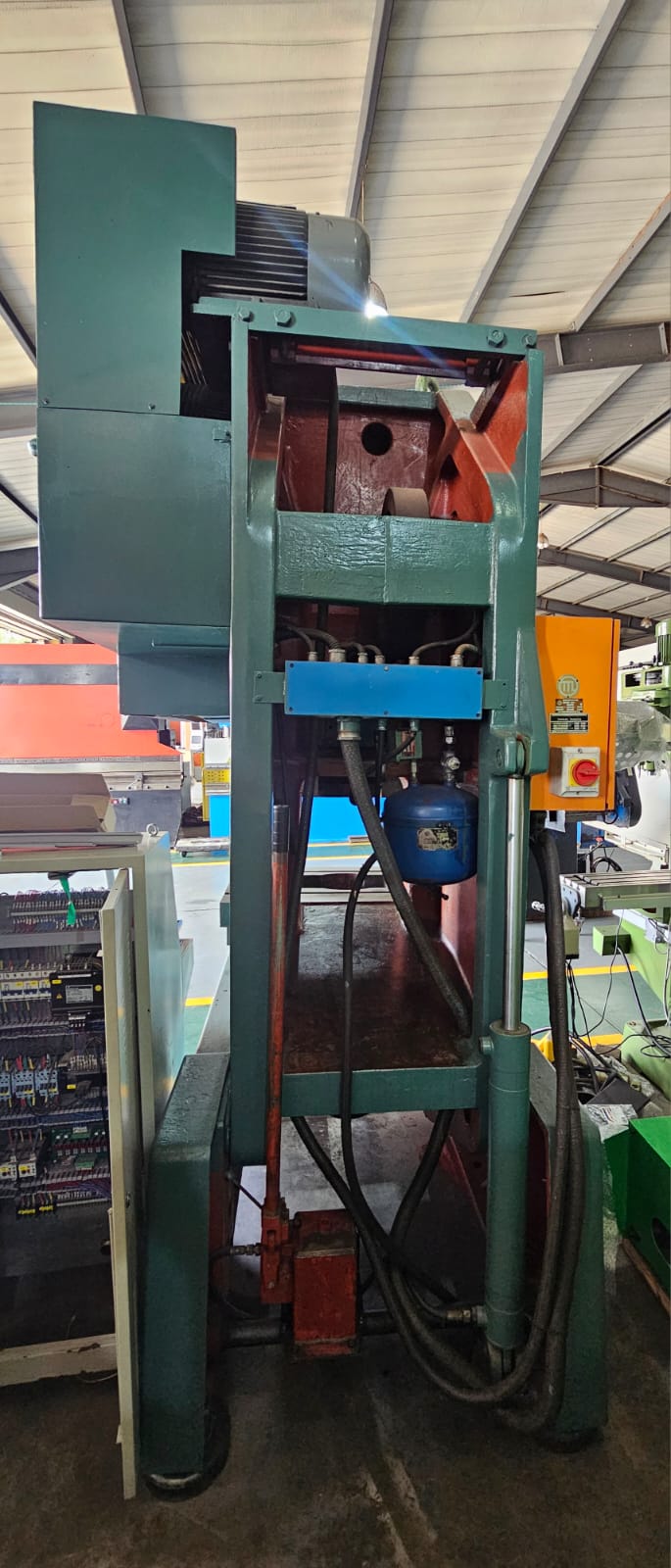

TOS LEXN 100 ECCENTRIC PRESS

For pricing please contact our sales team

Feature Metric Imperial (Approx)

Rated Force (Capacity) 100 Tons (1,000 kN) 100 Tons

Stroke Length (Adjustable) 10 – 125 mm 0.4" – 5"

Table Size 1000 x 640 mm 39.3" x 25"

Ram (Slide) Area 800 x 475 mm 31.5" x 18.7"

Throat Depth 355 mm 14"

Shut Height (Max) 380 mm 15"

Slide Adjustment 90 mm 3.5"

Strokes Per Minute 75 – 150 SPM

Main Motor Power 7.5 kW – 11 kW ~10 – 15 HP

Machine Weight ~10,600 kg ~23,300 lbs

Dimensions (L x W x H) 1725 x 2230 x 2970 mm

Get a quote
