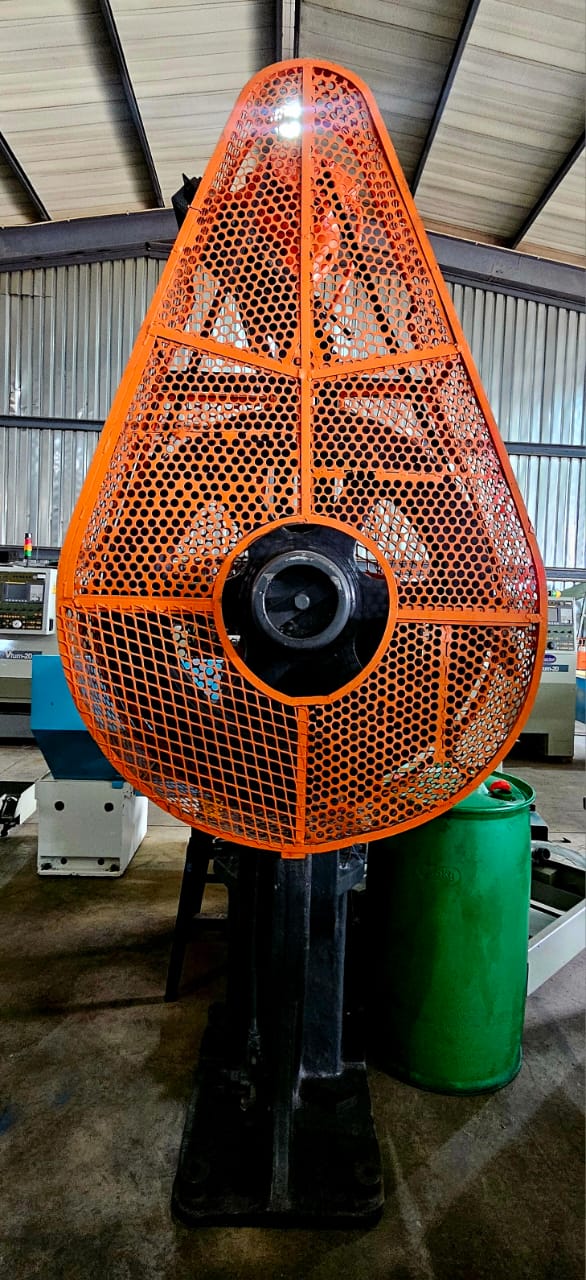

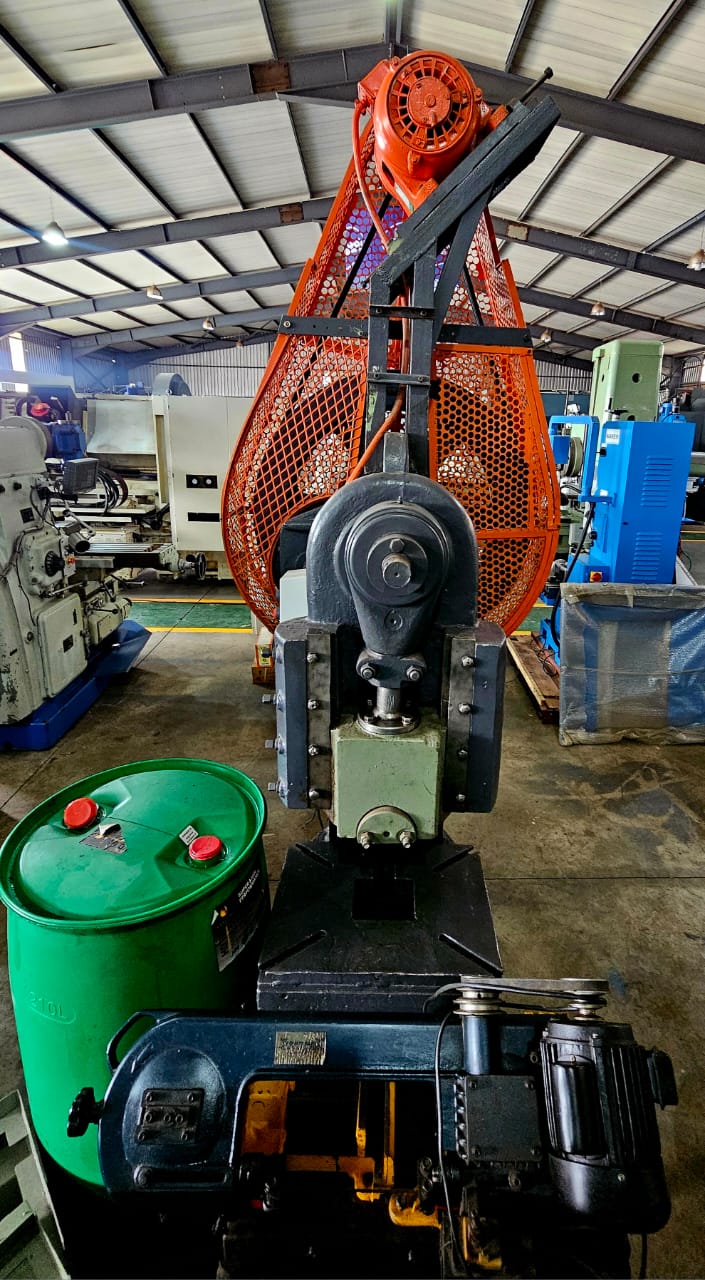

RHODES 25 TON ECCENTRIC PRESS

For pricing please contact our sales team

Parameter Specification

Model Rhodes RH 25 (or similar range)

Nominal Force (Capacity) 25 Tons (250 kN)

Type Open Front / C-Frame / Inclinable

Stroke Length Adjustable (Typically ½" – 3½" or 12mm – 90mm)

Strokes Per Minute (SPM) ~100 – 120 (Ungeared) / ~40 – 60 (Geared)

Shut Height (Ram to Bed) ~8" – 9" (200mm – 230mm) stroke down, adj. up

Ram Adjustment ~2" – 2.5" (50mm – 65mm)

Throat Depth ~7" – 8.5" (180mm – 215mm)

Bed / Bolster Area ~20" x 14" (500mm x 350mm)

Bed Opening (Hole) ~9" – 11" (230mm – 280mm)

Motor Power ~3 – 4 HP (2.2 kW – 3 kW)

Electrics 380V / 400V (3-Phase)

Approx. Weight 1,500 kg – 2,000 kg
