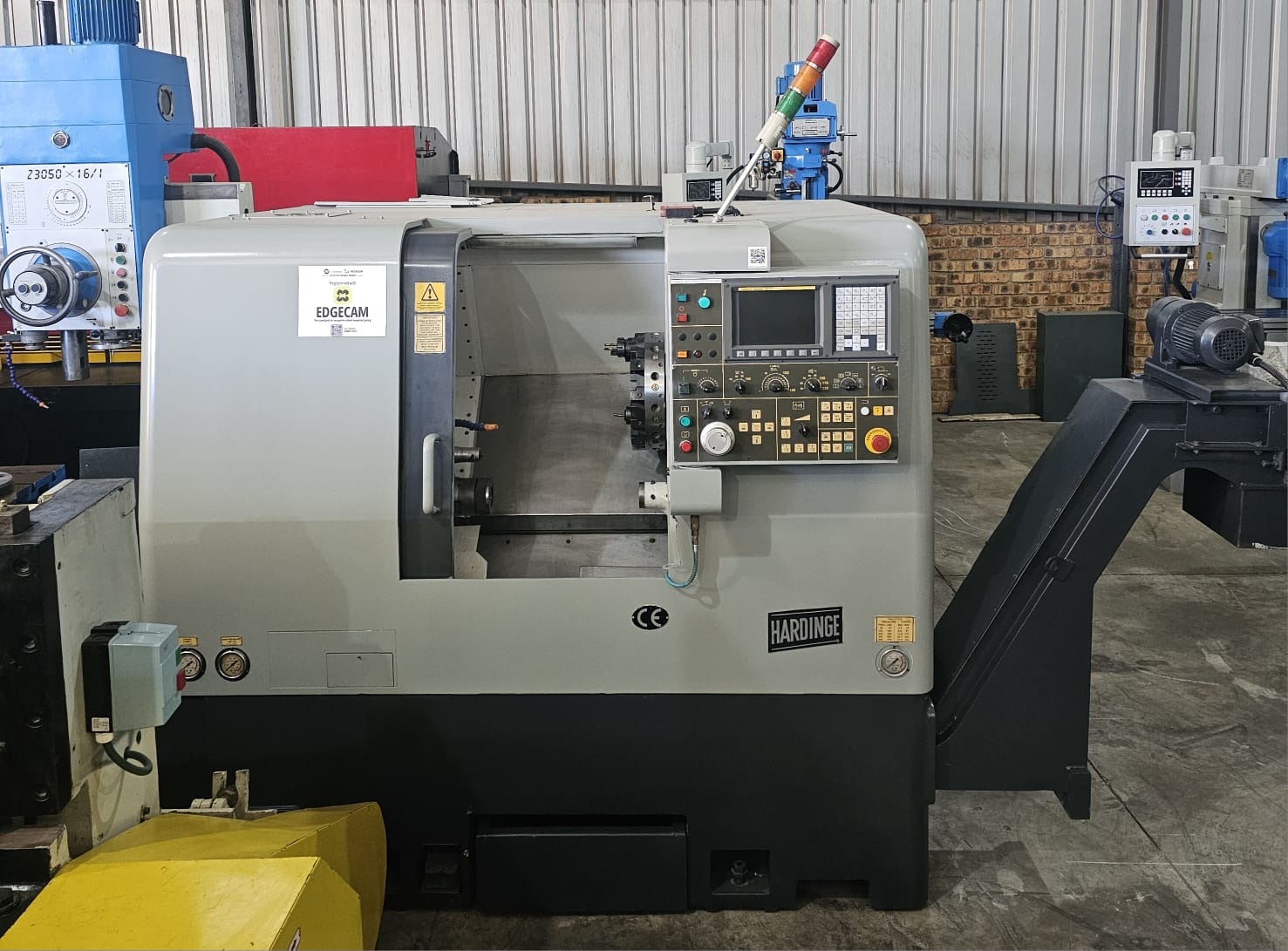

HARDINGE TALENT -6/45

For pricing please contact our sales team

Parameter	Value
Chuck Size	6 in (152 mm)
Maximum Bar Capacity	45 mm (1.77 in)
Maximum Turning Diameter	200 mm (7.87 in)
Maximum Turning Length	250 mm (9.84 in)
Spindle Speed (Max)	5,000 RPM
Spindle Power	7.5 kW (10 hp)
Spindle Torque (Max)	95 Nm (70 ft-lb)
Spindle Bore	45 mm (1.77 in)
Tooling System	Gang-tool flat slide
Workholding	5C collet-ready, chuck optional
Rapid Traverse X	20 m/min (787 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Control	Fanuc 0i-TF
Machine Weight	2,500 kg (5,512 lb)
