C6251 X 1500MM

Contact Sales
Get a quote

For pricing please contact our sales team

T-Series Precision Solid Base Lathes

Lathes designed for high precision turning.
  • 330 – 560 mm swing over bed
  • 1 – 3 m turning length

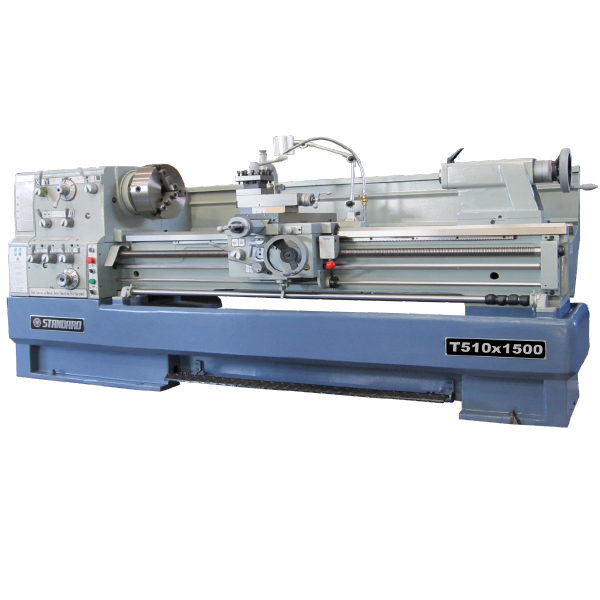

T510x1500
  • 510 mm swing
  • 1500 mm b/c
  • 300 mm diameter over saddle
  • 80 mm spindle bore
  • 7.5 kw motor
  • 3x spindle bearings
Swing over bed

510 mm
Swing over saddle

300 mm
Swing in gap

738 mm
Length of gap

200 mm
Distance between centers

1500 mm
(Option: 2000 + 3000)
Width of bed

350 mm
Spindle bore / fitting

80 mm / D1-8
Spindle Speeds

25-1600 rpm
Top / cross slide travel

130 / 326 mm
Metric threads

47 kinds
0.2-14 mm
Inch threads

60 kinds
2-112 TPI
Diametrical Pitches

50 kinds
4-112 dp
Module Pitches

39 kinds
0.1-7 mp
Tailstock travel

180 mm
Tailstock taper

MT5
Main motor

7.5 kw
Dimension (L x W x H)

2900 x 1120 x 1430 mm
Weight

2335 kg

Get a quote
